Call Server Flow
The Call ServerFlow construct is used to invoke and execute another serverflow within a logic flow. It allows for modularization and reuse of serverflow.
By using this construct, users can integrate multiple serverflow, promote code reusability, and achieve structured and organized server side logic.
Follow the below steps to add the Call ServerFlow construct in a logic flow:
- In the designer canvas of a logic flow, drag and drop the Call ServerFlow construct into the flow.

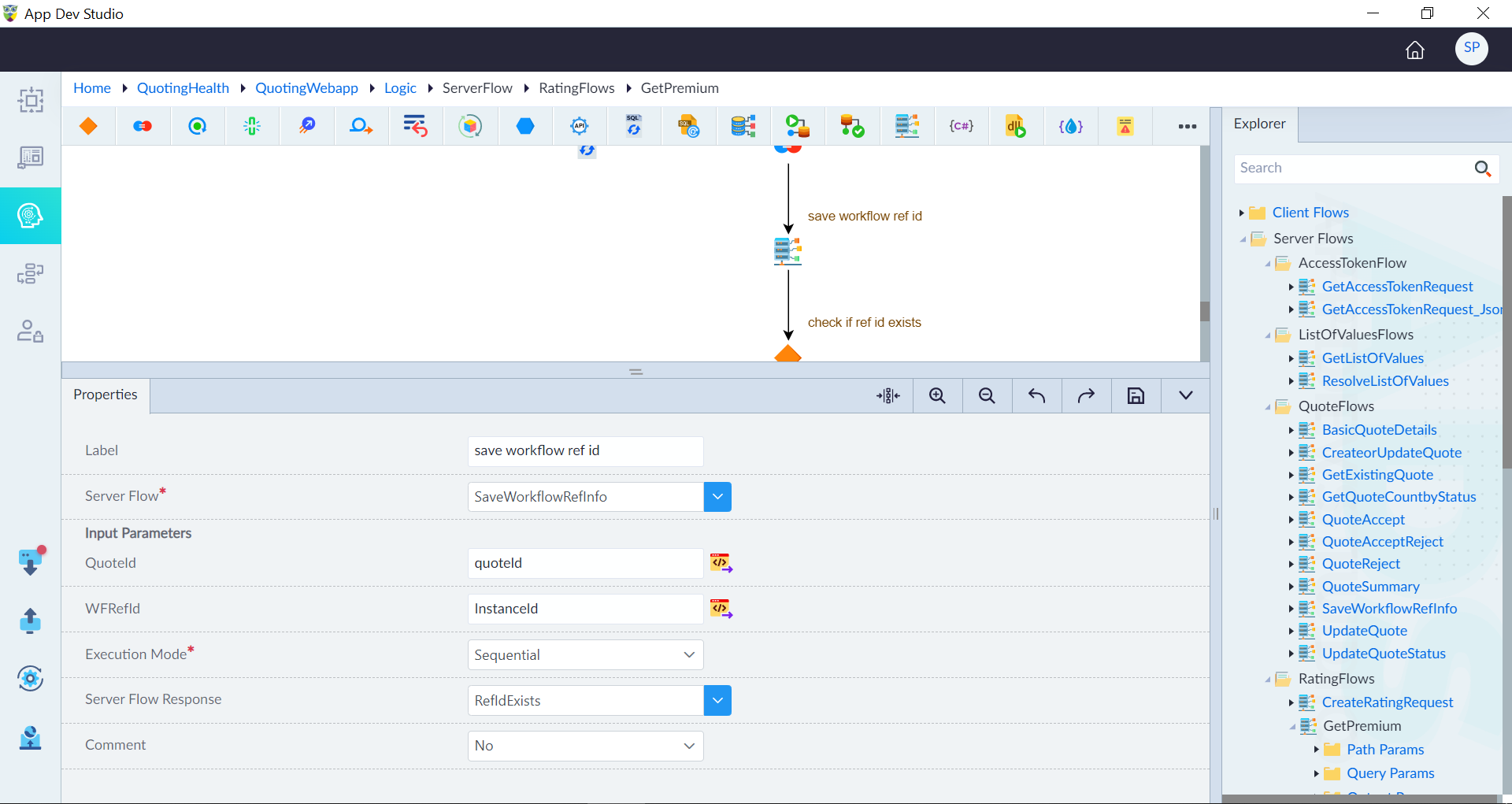

- Double-click the construct to configure the properties as required and then click save.
| Property | Description | Comments |
|---|---|---|
| Label | Provide a label for the construct for easy identification in a logic flow. | - |
| Server Flow* | Select the name of the server flow from the drop-down. | - |
| Input Parameters | ||
| <parameter name> | Provide the input parameter using the expression builder. | - |
| Execution Mode* | Select the type of execution. Either Sequential or Async. | - |
| Server Flow Response | Select the server flow response. | - |
| Comment | Specify whether to comment this construct or not. Either Yes or No. | If marked as Yes, the construct is treated as a commented expression and ignored in code generation. |
Note: An asterisk (*) denotes that the property is mandatory for adding the Call ServerFlow construct.
The success message displays upon successfully adding the construct.
