Resources

The Resources feature in Logic provides a centralized system for managing assets such as config files, and other resources used in Serverflows/workflows. This functionality allows users to upload, store, and organize resources directly within their Serverflows and workflows.

Use Cases​

  • A server flow can fetch API credentials from a stored config.json file instead of embedding them directly in the logic.
  • A server flow can fetch an HTML email template from Resources, replace placeholders with user data, and send the email.

Adding a Resource​

Steps to Add a Resource​

  1. Navigate to Logic:
    • Click on the Logic icon in the left navigation menu.
  2. Open Resources Panel:
    • In the Explorer Panel, right-click Resources, then click Add.
  3. Enter Resource Details:
    • Name* → Provide a unique name for the resource.
    • Language* → Select the programming language associated with the resource.
    • Resource* → This option appears after selecting a language. Upload the corresponding resource file.
    • Description (Optional) → Add a brief description of the resource.
    • Is Active → Toggle this setting to enable or disable the resource.
  4. Save the Resource:
    • Click Save to complete the resource addition.

Note: Fields marked with an asterisk (*) are mandatory.

Uploading a Resource File​

Steps to Upload a Resource File​

  1. Navigate to Logic:
    • Click on the Logic icon in the left navigation menu.
  2. Open Resources Panel:
    • Right-click Resources, then click Upload.
  3. Select a File:
    • Click Browse and choose the resource file from your local system.
  4. Provide Additional Information:
    • File* → Select the file to upload.
    • Description (Optional) → Add a brief description of the uploaded resource.
    • Is Active → Toggle the status (Enable/Disable) for the resource.
  5. Upload the File:
    • Click Upload to store the resource in the system.

Note: Fields marked with an asterisk (*) are mandatory.

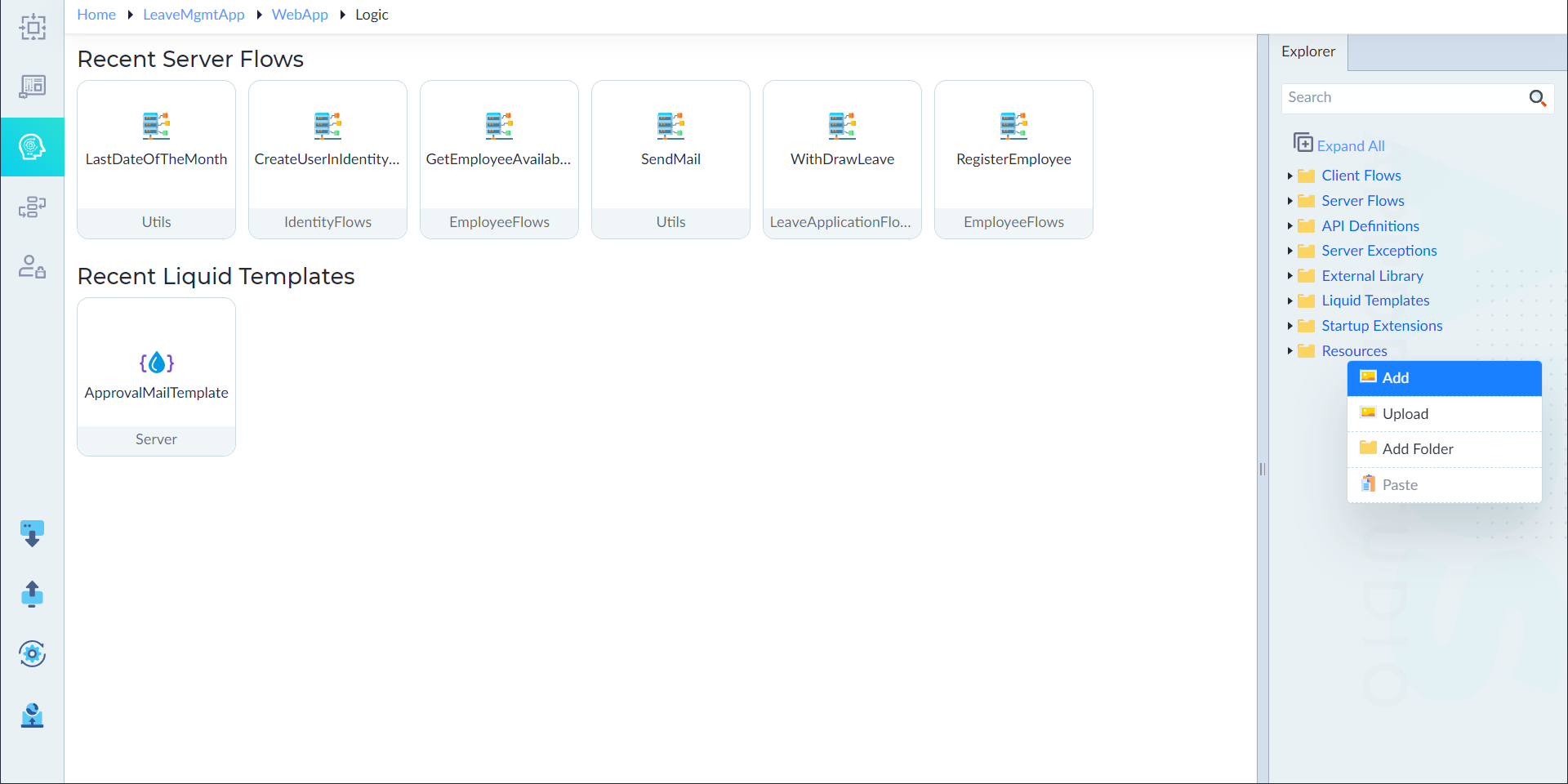

Resources

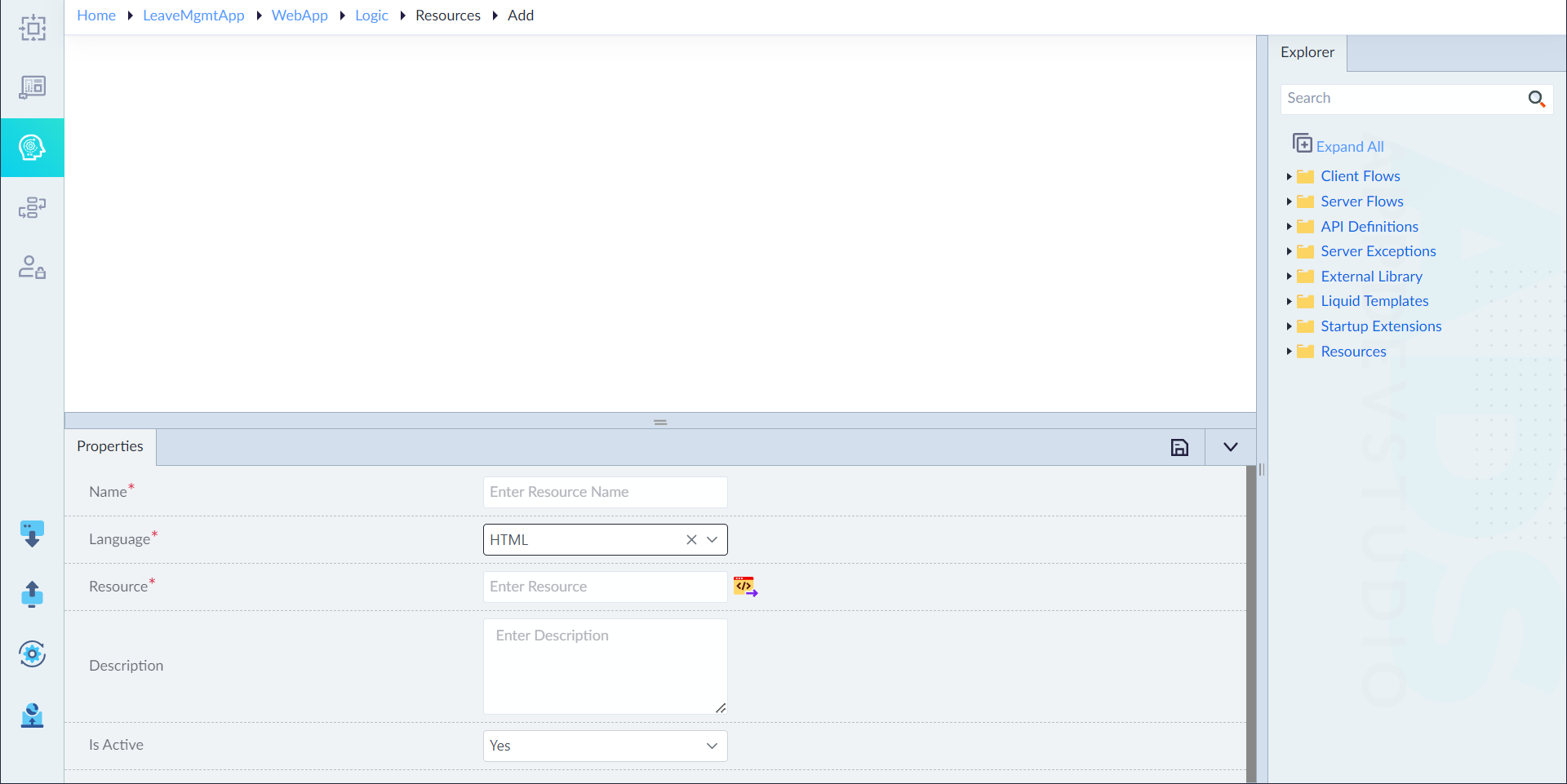

Resources Upload
